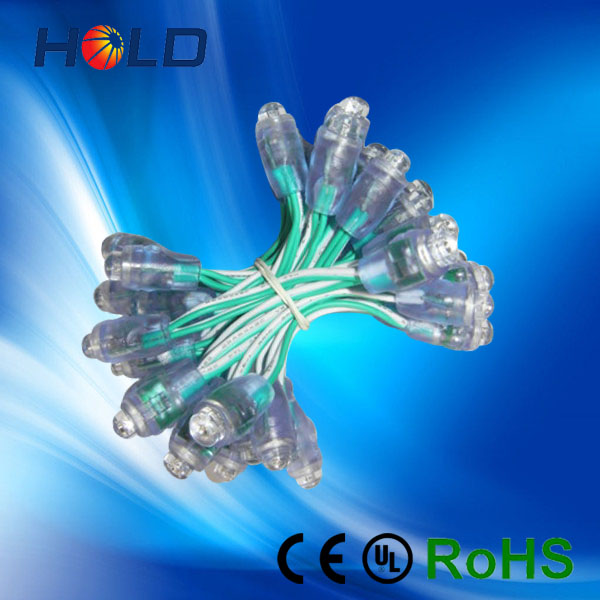

12mm single color pixel

12mm single color pixel

Number:
人 气:2431
Label:

HD-12F

Introduction
parameter:

LED Type

Straw Hat LED

Working Voltage

DC5V

Working Current

20mA

Power

0.1W

View Angle

120dgree

Waterproof Level

IP66

Emit Color

Single Color

LED Size

∮8mm

Product Size

∮12*28mm

Packing

50pcs/String



Apllication of 5v led lamp:

channel letter backlighting

spurts draws light

advertisement sign light

indoor and outdoor illumination

architectural decorative lighting



Operation Instructions:
50pcs of each string, 1A/string. User can use paralleling for multiple strings, each string running a loop, to avoid the nonuniform color which caused by the voltage drop, the thickness of power cord should not less than
 1.5mm².

Keep it in a well-ventilated environment, which good for heat dissipation.
The Green wire is Input, Red wire connect with positive pole on the power supply,  yellow wire connect with negative pole and controller’s GND port, green wire is connect to controller DAT port. Do not reversal!
Banned charged work.



Features:
The led lamp diameter is 12mm, punching 12mm hole.

It’s cuttable.
According to the signboard hanging height, the distance between lamps should be within 3
-6cm.
This lamp use special optical lens, high light transmittance. protect chip from moist, Unti-UV, thermostability, cold-resistant, anti-corrosion, and anti,acid-base, etc, more longer life time.
