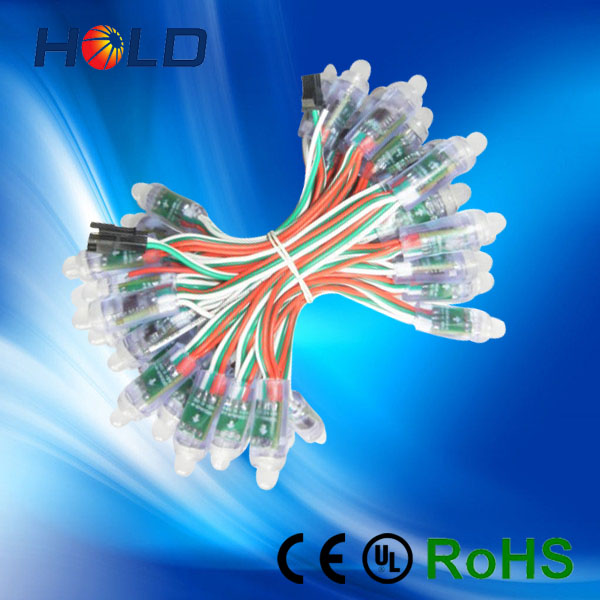

Introduction|
LED Type |
Straw Hat LED |
|
Working Voltage |
DC5V |
|
Working Current |
60mA |
|
Power |
0.3W |
| IC NO | WS2811/1903 |
|
View Angle |
120dgree |
|
Waterproof Level |
IP66 |
|
Emit Color |
Full Color |
|
LED Size |
∮8mm |
|
Product Size |
∮12*37.5mm |
|
Packing |
50pcs/String |
Apllication of 5v led lamp:
channel letter backlighting
spurts draws light
advertisement sign light
indoor and outdoor illumination
architectural decorative lighting
Operation Instructions:
50pcs of each string, 3A/string. User can use paralleling for multiple strings, each string running a loop, to avoid the nonuniform color which caused by the voltage drop, the thickness of power cord should not less than 1.5mm².
Keep it in a well-ventilated environment, which good for heat dissipation.
Red wire connects "+",Green wire connects "DAT" on the controller, White wire connects both "-" & "GND" on the controller. Do not reversal!
Banned charged work.
Features:
The led lamp diameter is 12mm, punching 12mm hole.
It’s cuttable.
According to the signboard hanging height, the distance between lamps should be within 5-8cm.
This lamp use special optical lens, high light transmittance. protect chip from moist, Unti-UV, thermostability, cold-resistant, anti-corrosion, and anti,acid-base, etc, more longer life time.
