Introduction|
LED Type |

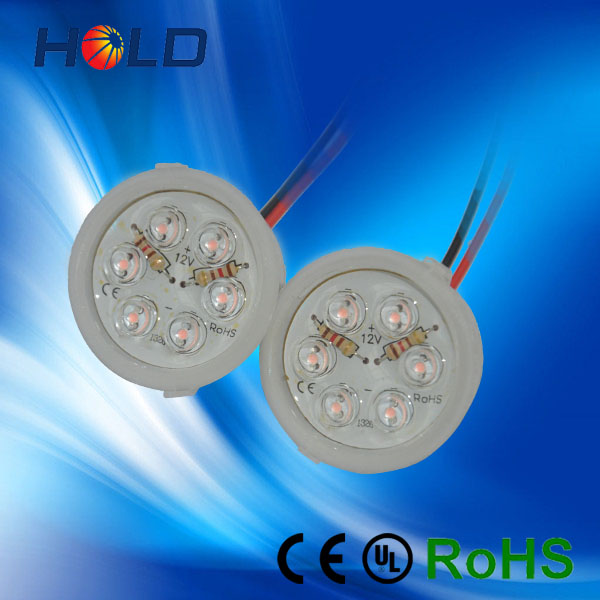

Straw Hat LED |
| LED Q'TY | 6pcs |
|
Working Voltage |
DC12V |
|
Working Current |
40mA |
|
Power |
0.48W |
|
View Angle |
120dgree |
|
Waterproof Level |
IP66 |
|
Emit Color |
Single Color |
|
Product Size |
∮30*13mm |
|
Packing |
20pcs/String |
Apllication of 5v led lamp:
channel letter backlighting
spurts draws light
advertisement sign light
indoor and outdoor illumination
architectural decorative lighting
Operation Instructions:
20pcs of each string, User can use paralleling for multiple strings, each string running a loop, to avoid the nonuniform color which caused by the voltage drop, the thickness of power cord should not less than 1.5mm².
Keep it in a well-ventilated environment, which good for heat dissipation.
The Green wire is Input, Red wire connect with positive pole on the power supply, yellow wire connect with negative pole and controller’s GND port, green wire is connect to controller DAT port. Do not reversal!
Banned charged work.
Features:
The led lamp diameter is 30mm, punching 30mm hole.
It’s cuttable.
According to the signboard hanging height, the distance between lamps should be within 6-10cm.
This lamp use special optical lens, high light transmittance. protect chip from moist, Unti-UV, thermostability, cold-resistant, anti-corrosion, and anti,acid-base, etc, more longer life time.
